22*33mm 50*33mm Width Adjustable U Profile Roll Forming Machine
  • 22*33mm 50*33mm Width Adjustable U Profile Roll Forming Machine
  • 22*33mm 50*33mm Width Adjustable U Profile Roll Forming Machine
  • 22*33mm 50*33mm Width Adjustable U Profile Roll Forming Machine
  • 22*33mm 50*33mm Width Adjustable U Profile Roll Forming Machine
  • 22*33mm 50*33mm Width Adjustable U Profile Roll Forming Machine

22*33mm 50*33mm Width Adjustable U Profile Roll Forming Machine

원래 장소 우시, 중국
브랜드 이름 Sussman
인증 CE, SGS, ISO
모델 번호 RF-ST
제품 상세정보
재료 두께:
1.0-1.5mm 아연 도금 코일
회전속도 (rolling speed):
구동 체인이있는 5-6m/분
롤러 스테이션:
약 13 개의 스테이션이 형성됩니다
주 엔진 전력:
5.5 KW
절단의 재료:
담금질 처리된 CR12Mov
드라이브의 방식:
1 인치 단일 체인
지불과 운송 용어
최소 주문 수량
1 세트
가격
negociate
포장 세부 사항
영화와 스틸
배달 시간
60 일 후는 침적됩니다
공급 능력
10개 세트 / 달
제품 설명

22*33mm 50*33mm Width Adjustable U Profile Roll Forming Machine

Applications of U Profile (23×33mm – 90×33mm, 1.0–1.5mm Thickness)
U-shaped steel profiles, commonly known as U channels or U tracks, are widely used in various construction and industrial
applications due to their lightweight design, high strength-to-weight ratio, and ease of installation. The U profiles with
dimensions 23×33mm, 50×33mm, 60×33mm, 70×33mm, and 90×33mm, and thicknesses ranging from 1.0 to 1.5mm, are particularly suited for the following uses:

----------------------------------------------------------------------------------------------------------------------------------

1. Light Steel Framing Systems
These U profiles are commonly used in light gauge steel construction, especially as top and bottom tracks in wall framing systems.
When paired with C-shaped studs, they form non-load-bearing or partition wall structures in both residential and commercial buildings.
* 23×33mm and 50×33mm U profiles are ideal for use in light-duty partition walls and ceiling perimeter frames.

* 60×33mm, 70×33mm, and 90×33mm are suitable for higher partitions, stronger wall frameworks, and applications where additional rigidity is required.

Advantages:
* Fast and easy installation.

* Corrosion resistance when galvanized.

* Precise dimensions for accurate framing.

* Compatible with drywall systems.

----------------------------------------------------------------------------------------------------------------------------------

2. Ceiling Suspension Systems
Smaller-sized U profiles (e.g., 23×33mm) are often used in ceiling frameworks, functioning as support channels or perimeter tracks
in suspended ceilings, acoustic ceiling panels, and plasterboard ceiling systems.

----------------------------------------------------------------------------------------------------------------------------------

3. Electrical and Mechanical Support Channels
U profiles with 1.2–1.5mm thickness are used to support electrical conduits, cable trays, HVAC ducts, and plumbing pipes in commercial and industrial installations. They serve as mounting rails and fixing brackets in utility support structures.

----------------------------------------------------------------------------------------------------------------------------------

4. Furniture and Interior Fixtures
In interior decoration and modular furniture systems, U profiles are sometimes used as framing elements, edge trims, or panel supports due to their sleek appearance and structural simplicity.

----------------------------------------------------------------------------------------------------------------------------------

5. Industrial Framing and Shelving
Heavier-duty U profiles such as 70×33mm and 90×33mm can be used in the fabrication of metal shelving, storage racks, and light-duty framing structures in warehouses and workshops.

----------------------------------------------------------------------------------------------------------------------------------

Summary
The U profiles ranging from 23×33mm to 90×33mm with 1.0–1.5mm thickness are versatile, cost-effective, and structurally reliable.
They are widely adopted in the construction, interior finishing, mechanical, and industrial sectors. Depending on the specific size and thickness, they can be used for anything from light ceiling grids to rigid wall framing and equipment support systems.

Technical Parameter

  Items Specifications
Material of coil Material Thickness 1.0-1.5mm G550 Galvanized coils
Forming system Rolling Speed 5-6 m/min with driven chain
  Roller Stations About 13 stations forming
  Roller Material Gcr15 Steel with quenching
  Shaft Material

45# Steel Diameter 75mm shaft



  Main Motor Power 5.5 kw

Cutting
system

Material Of Cutting CR12mov with quench treatment
  Hardness HRC58-62
  Tolerance +-1.5mm
  Cutting blade 2 sets of cutting blade
Electrical control system Electric Source 380V, 50HZ,3 phase, according to buyer’s request
  Control System PLC with touch screen
  Weight About 5 tons
  Way Of Drive 1 inch single chain
  Size of machine Length 6000mm* Width 800mm* Height 1500m


Machine List


3 tons hydraulic de-coiler 1 set
Main roll forming machine 1 set
PLC Control box 1 unit
Hydraulic cutting device 1 unit
Hydraulic punching device 1 unit
6 meters Simple auto stacker 1 unit


Profile Drawing

22*33mm 50*33mm Width Adjustable U Profile Roll Forming Machine 0



Technological process:



Decoiler—feeding with guide—Roll forming—Cutting—Products collecting


 22*33mm 50*33mm Width Adjustable U Profile Roll Forming Machine 1

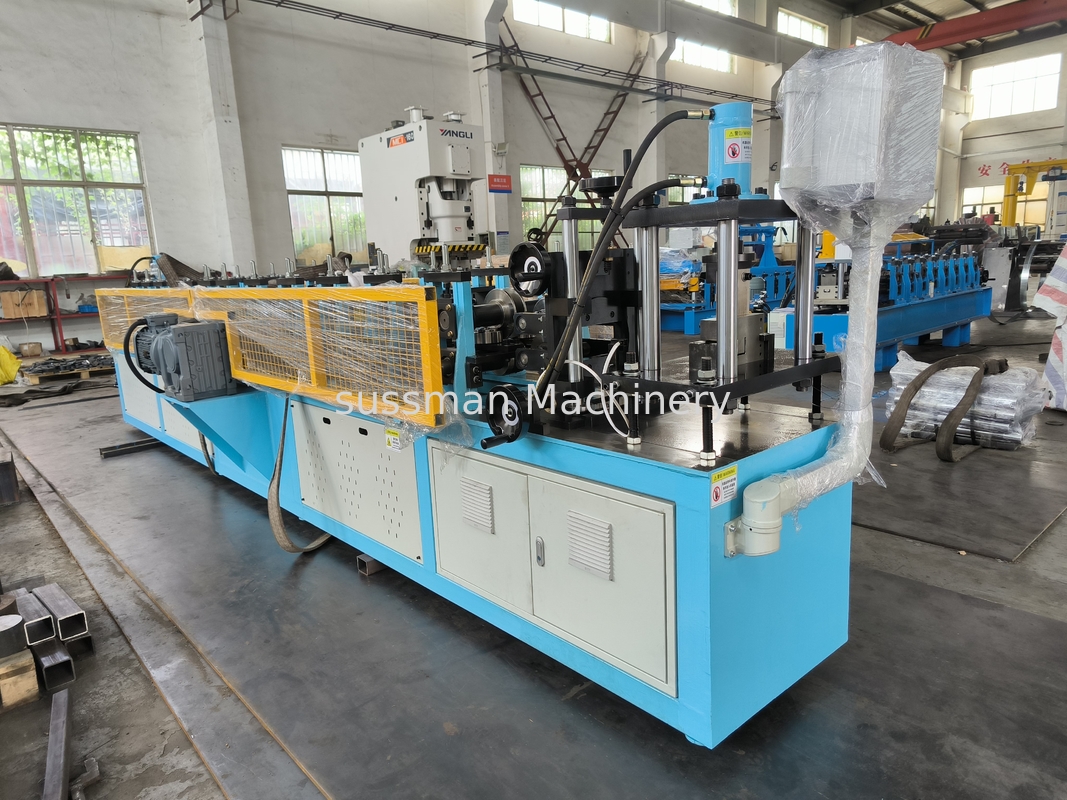

Machine Pictures

22*33mm 50*33mm Width Adjustable U Profile Roll Forming Machine 2
