제품 상세 정보:
|
| 물자: 간격: | 1.5-2.5mm 직류 전기를 통한 강철 | 주발동기 힘: | 18.5kw |
|---|---|---|---|
| 유압 역 힘: | 4KW | 자르기: | 유압 자르는 Cr12mov |
| 갱구의 물자: | 45# 진보된 강철 | 제어 시스템: | 터치스크린을 가진 PLC Panasonic |
| 디코 일러: | 유압 decoiler | 구멍을 뚫는 체계: | 구멍 뚫는 기구 |
| 하이 라이트: | 슬롯화 채널 성형기,수력 디코일러 채널 성형기,12m/min 슬롯화 채널 롤링 장치 |
||

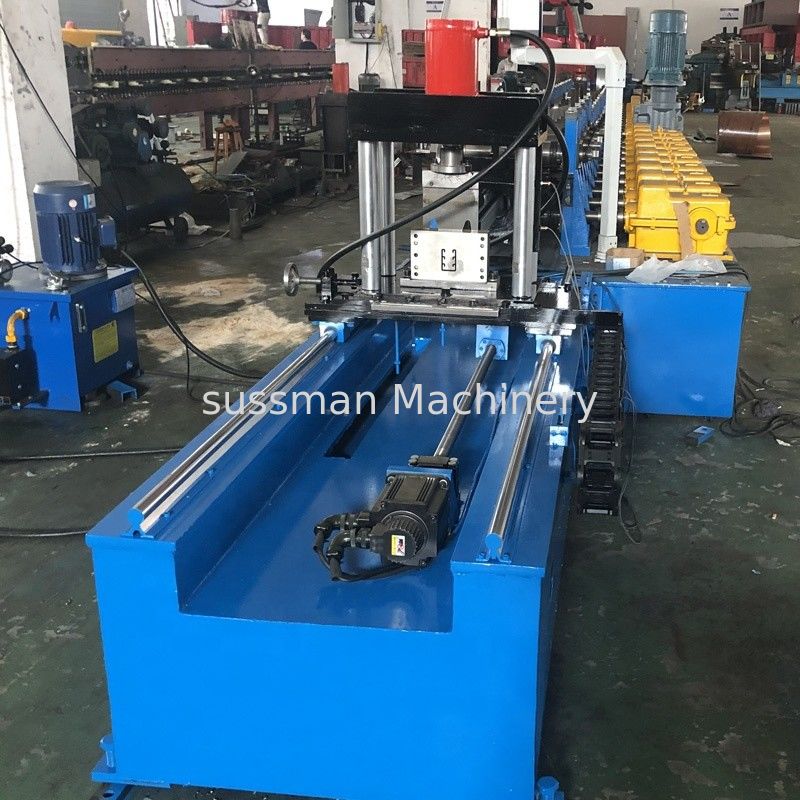

1.5-2.5mm Hydraulic Decoiler Strut Slotted Channel Making Machine
1. Solar Strut Channel Technical Parameter
| Machine Specifications | |
|---|---|
| Weight | About 10000kgs |
| Size | About 20m x 1.0m x 1.0m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized steel |
| Thickness | 1.5-2.5mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 18-20 |
| Diameter of forming rollers shafts | 75mm |
| Working Speed | 8-12m/min |
| Forming rollers material | Gr15 mould steel, with quenched treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: about 22 kw |
| Hydraulic station | Motor 5.5kw |
2. Solar Strut Channel Machine Components
Solar photovoltaic strut roll forming machine can produce several shape products as profile.
The different size of channel is adjusted by the spacers between up and downside rollers. Because the design of these spacers is half circle, then two joint together, so when adjusting, needn't remove the rollers, it is very easy and convenient.when change different specification, need to change the cutting mould.
No. |
Size | Thickness |
Surface Treatment |
||
| mm | Inch | Thickness | Gauge | ||
| A | 41x21 | 1-5/8x13/16" | 1.0,1.5,2.0,2.5,2.75.3.0 | 19,16,14,12 | HDG,PG,PC |
| B | 41x22 | 1-5/8x7/8" | 1.0,1.5,2.0,2.5,2.75.3.0 | 19,16,14,12 | HDG,PG,PC |
| C | 41x25 | 1-5/8x1" | 1.0,1.5,2.0,2.5,2.75.3.0 | 19,16,14,12 | HDG,PG,PC |
| D | 41x41 | 1-5/8x1-5/8" | 1.0,1.5,2.0,2.5,2.75.3.0 | 19,16,14,12 | HDG,PG,PC |
| E | 41x62 | 1-5/8x27/16" | 1.0,1.5,2.0,2.5,2.75.3.0 | 19,16,14,12 | HDG,PG,PC |
| F | 41x82 | 1-5/8x3-1/4" | 1.0,1.5,2.0,2.5,2.75.3.0 | 19,16,14,12 | HDG,PG,PC |
| S.N | Equipment name | Quantity |
| 1 | 3T electric un-coiler | 1 set |
| 2 | Feeding guide | 1 set |
| 3 | Main roll forming machine | 1 unit |
| 4 | Main roll forming machine | 1 set |
| 5 | Hydraulic cutting | 1 set |
| 6 | control box | 1 set |
| 7 | Out tables | 2 units |
4. Solar Strut Channel Application
1.These include pipes, electrical and data wire, mechanical systems such as ventilation, air conditioning, and other mechanical systems.
2.Strut channel is also used for other applications that require a strong framework, such as workbenches, shelving systems, equipment racks, etc. S
3.Solar frame panel is used to mount, brace, support, and connect lightweight structural loads in building construction.
Profile Drawing
Machine Layout
